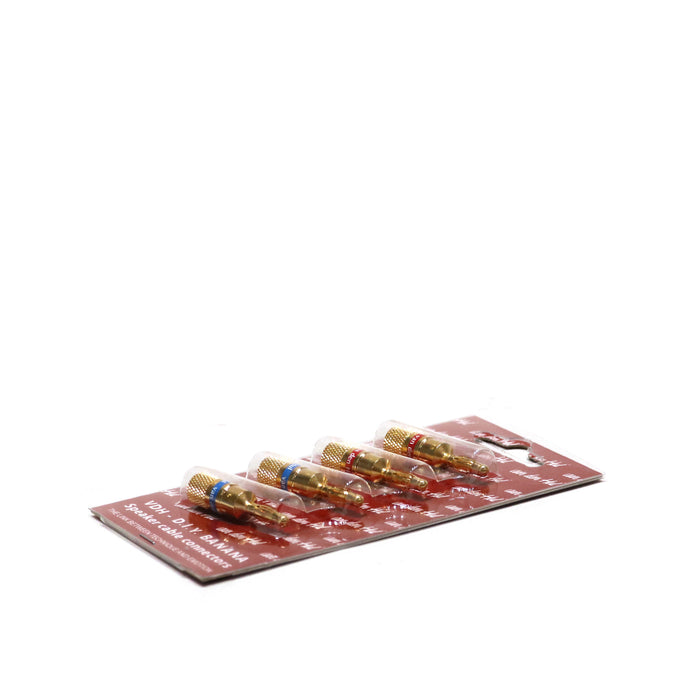

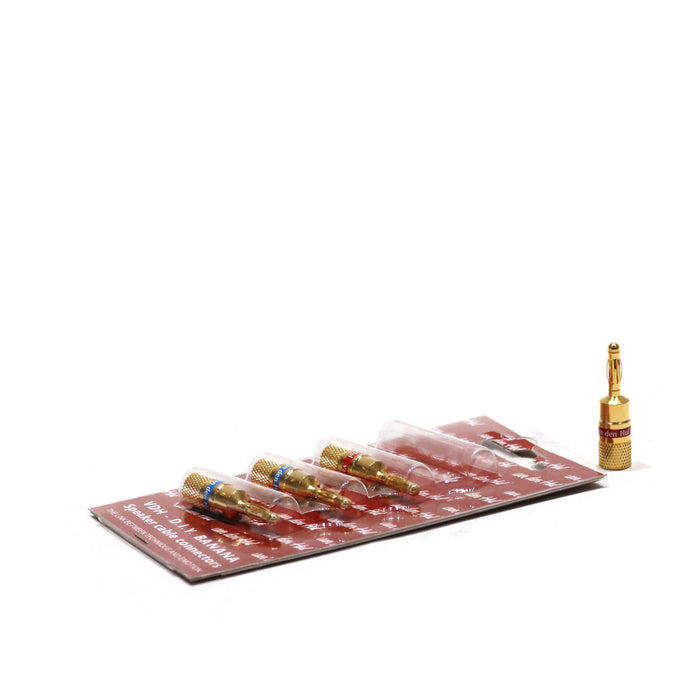

van den Hul D.I.Y BANANA speaker cable connectors set of 4

• 24 carat gold plated, screw-on, solderless connectors

• Available in packs of four angled spades (fork) or banana plugs with red or blue rings for polarity identification

• Only suitable for multi-strand loudspeaker cable and wire types. Minimum values: AWG 12 (Ø2 mm), for the bare conductor, and Ø 6.5 mm for jacket diameter

• The banana and the angled fork spade screw-on terminals are WBT binding post fitting. Both offer excellent mating properties and minimal contact resistance.

• The high pressure clamping ensures low loss electrical connection and maximum signal transfer

• Banana terminal (standard Ø4 mm pin)

• Angled fork spade terminal fits studs from Ø 6.0 mm to Ø 8.5 mm.

• Easy assembly instructions (4 steps):

1. Strip off 14mm of the multi-strand cable/wire jacket


2. Insert the stripped end through the screw-on collar


3. Fan out the strands and evenly fold them encircling the collar


4. Insert the banana pin/spade blade and screw-on to the collar

• These connectors fit the following cables and wires:

The CLEARTRACK	CS – 12 HF
The CLEARWATER	CS – 14 HYBRID
D – 352 HYBRID	CS – 14
The GOLDWATER	CS – 16
The INSPIRATION HYBRID	CS – 122 HYBRID
The SKYLINE HYBRID	SCS – 16
The SNOWLINE	SCS – 18
The TEATRACK HYBRID
The TWIN
The WIND Mk II HYBRID

TIP:

Try our special contact fluid The SOLUTION on the strands before mounting the banana pin/spade blade part.
